Description:

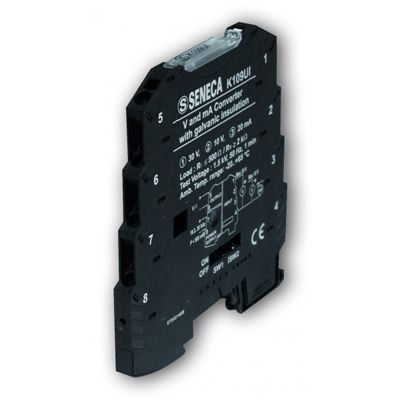

Galvanic isolator analog converter

Input:

Current 0/4 to 20 mA; Voltage 0 to 15, 0 to 30, 0 to 10, 2 to 10, 0 to 5, 1 to 5 Vdc

Output:

Current 0/4 to 20, 20 to 4/0 mA; Voltage 0 to 10, 2 to 10, 0 to 5, 1 to 5 Vdc

Max Consumption:

22 mA

Isolation:

1.5 kVac, 3 way

Resolution:

14 bit

Precision Class:

0.1%

Power Supply Technique:

Direct on spring cage terminal or distributed with K-BUS connector

Dimensions:

6.2 x 93.1 x 102.5 mm

Special Function:

Scale inversion, square root extraction, cylinder tanks linearization
