Description:

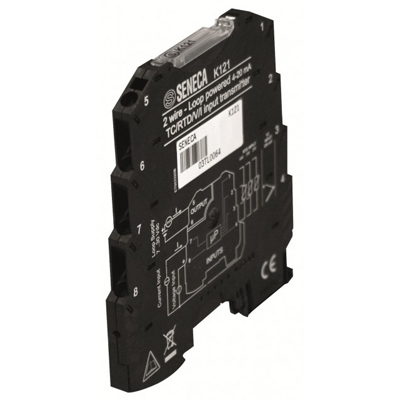

Loop powered isolator / universal converter (mA, V, Ohm, RTD, TC)

Power Supply Range:

5 to 30 Vdc (by loop)

Isolation:

1.5 kVac

Input:

Nr 1 channel, current (±24 mA), V voltage (±30 V), mV voltage (±150 mV), TC (J, K, R, S, T, B, E, N - EN 60584), RTD (Pt100, Pt500, Pt1000, Ni100) 2/3/4 wires, resistance (500 Ohm to 10 kOhm; till a 1.760 Ohm)

Response Time:

140 to 620 ms

Output:

Nr 1 channel, current (4 to 20 mA)

Accuracy:

0.1%
