Description:

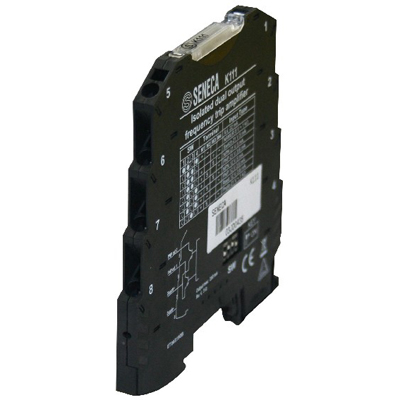

Isolated dual output frequency trip amplifier

Power Supply:

19.2 to 30 Vdc

Power Consumption:

< 25 mA

Input:

1-CH, IEC1131, Namur, PNP/NPN 2/3-wire, reed, photocell

Input Frequency:

Max 20 kHz, min 1 pulse each 116'

Output:

2-CH trip amplifier, PNP, BJT, Mosfet; max rating > 60 mA / 24 Vdc

Isolation:

1.5 kVac

Status Indicators:

3 LED, power supply, active threshold, error

Connection:

Spring clamp, SMART SUPPLY system

Compact Size:

93.1 x 102.5 x 6.2 mm (W x H x D)

Operating Temperature:

-10 to +65 °C
