Description:

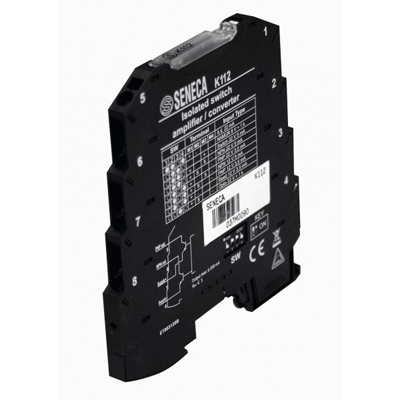

Universal digital coupler/isolator

Power Supply:

19.2 to 30 Vdc

Input:

Contact (IEC 1131.1 tipo 1), Namur (DIN 19234, EN 60947), NPN or PNP (12 or 22 V) 2/3 wires, reed, photocell, max frequency 400 Hz

Power Transducer:

8±0,6 V, 12±1 V, 22±2 V

Output:

Simultaneous PNP and NPN, max current 200 mA, max voltage 30 V (continuous), 50 V (pulse)

Isolation:

1.5 kVac @ 2-way

Connection:

Spring clamp, SMART SUPPLY system

Compact Dimension:

93.1 x 102.5 x 6.2 mm (W x H x D)

Operating Temperature:

-10 to +65 °C
