Description:

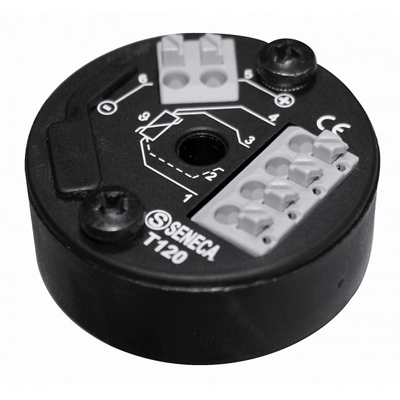

2 wire loop powered transmitter for Pt100 and Ni100 probes

Precision Class:

0.1%

Max Resolution:

16 bit

Pt100 Input:

EN 60751/A2, -200 to +650°C, min span: 20°C

Ni100 Input:

-60 to +250°C, min span: 20°C

Signal Connection Technique:

2, 3, or 4 wire

Process Connection:

Spring Terminals

Output:

4 to 20, 20 to 4 mA, and 2 wire

Operating Temperature:

-40 to +85°C

Software Configuration:

Start / Full Scale, Rejection, RTD Type, Cable Resistance, Over-Range, Etc.
