Description:

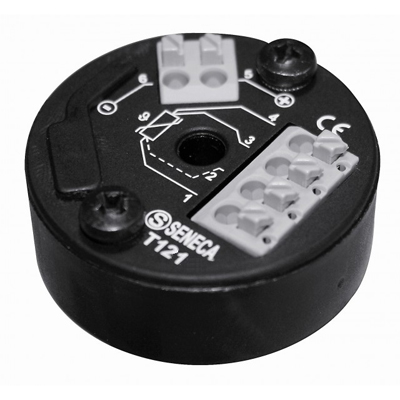

Isolated loop powered temperature transmitter

Accuracy:

0.1% (min: 0.1% for RTD and 1°C for TC)

Max Resolution:

16 bit

RTD Input:

(EN 60751/A2, -200 to +650°C, min span: 20°C), Pt500 (2, 3, and 4 wire: -200 to +650°C), Pt1000 (2, 3, and 4 wire: -200 to +200°C)

TC Input:

J, K, R, S, T, B, E, and N Type

Potentiometer Input:

450 to 1.800 ohm

Voltage Input:

-150 to +150 mV

Isolation:

1.5 kVac

Output:

4 to 20, 20 to 4 mA, 2 wire

Power Supply Range:

7 to 20 Vdc

Software Configuration:

Start / Full Scale, Rejection, RTD Type, Cable Resistance, Over-Range, Etc.
