Description:

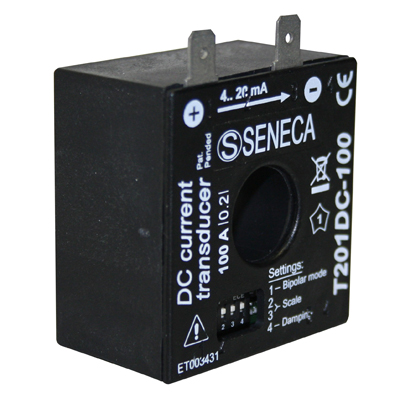

Passive current tranducers 100 Adc for 4 to 20 mA current loop

Input Scales:

Monopolar 0 to 10 A, 0 to 25 A, 0 to 50 A, 0 to 100 A; bipolar -10 to 0 to +10 A, -25 to 0 to +25 A, -10 to 0 to +50 A, -25 to 0 to +100 A

Isolation:

1.5 kVdc on raw conductor

Output/Power Supply:

4 to 20 mA passive current loop

Accuracy Class:

0.2%

Connectors:

Faston 6.3 x 0.8 mm for loop 4 to 20 mA; 17.80 mm hole for current cable

Dimensions:

50 x 52 x 29.8 mm except from Faston connectors
